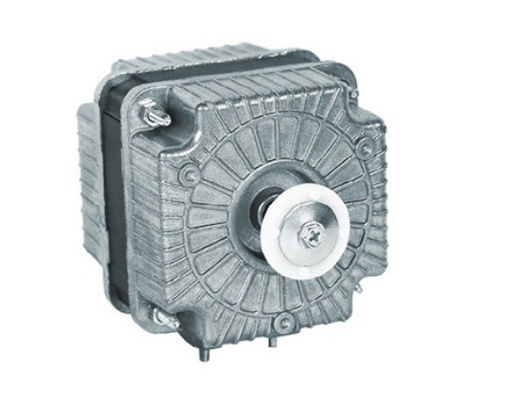

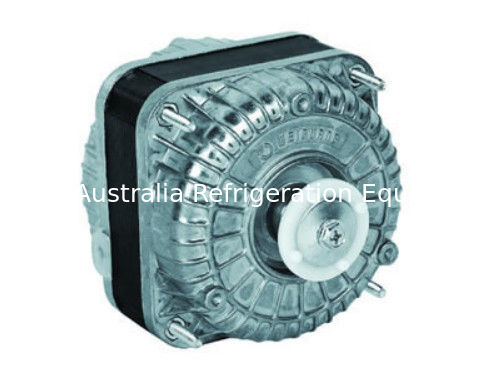

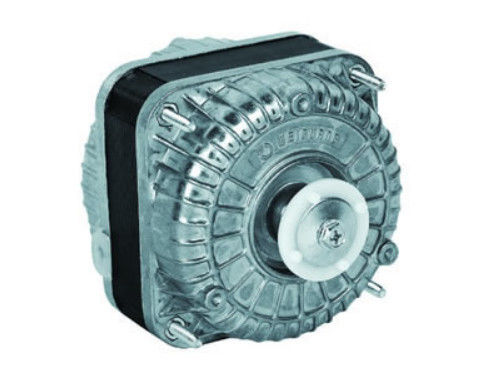

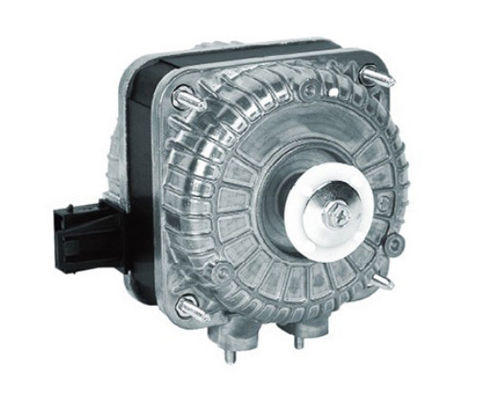

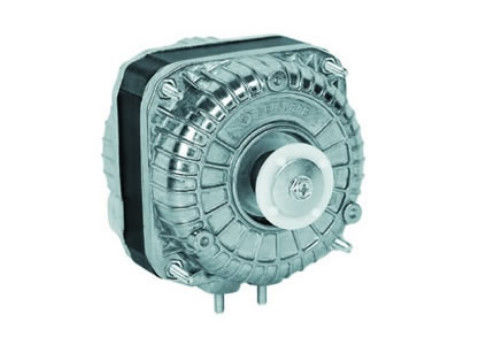

5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors

5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors

  • 5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors
  • 5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors
  • 5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors
  • 5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors
5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors
Product Details:
Place of Origin: China
Brand Name: Weiguang
Certification: CE / CCC
Model Number: 10W
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: negotiate
Packaging Details: Cartons or Pallet
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 2000pcs per week
Contact Now
Detailed Product Description
Power Supply: 220-240V,110-120V Frequency: 50/60Hz
Ambient Temp: -30℃ To 50℃ Average Service Life: Over 20000 Hour
Name: Shaded Pole Motors Certificate: CE/UL,CCC
High Light:

Weiguang YZF Refrigeration Fan Motors

,

10W 16W Shaded Pole Motors

,

Weiguang YZF Shaded Pole Motors

Weiguang YZF Series 5W,10W,16W,25W,34W Shaded Pole Motors For Adiator, Evaporator And Refrigeration Systems



1. YWF series motors are shaded pole motors with single phase, 4 shaded poles and running at rated voltage of 220-240V,50/60Hz or 110-120V,60Hz. They are widely usd in radiator, evporator and other refrigeration equipment.



2. The output power is from 5W to 34W, which is relative to the stack length.



3. The insulation class of motors is B, and the protection class of that is Ip42. On request Ip44 is available.



4. The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃+5℃ for outpower above 10W.



5. The applicable ambient temperature is from -30℃ to +50℃



6. Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request motors can be furnished with ball bearings.



7. The average service life of motors is over 20000 hours.



8. Most of shaded pole motors passed CE,VDE,UL and CCC approval.



Model Voltage (V) Frequency (Hz) Input W Output W Current A Speed r/min Fan blade mm Bracket mm Weight kg
YZF 5-13 220~240 50/60 33 5 0.25 1300 φ200 H72 0.8
YZF 6-13 110~120 60 33 6 0.55 1550
YZF 7-20 220~240 50/60 38 7 0.3 1300 φ230 H84 1.1
YZF 10-20 220~240 50/60 40 10 0.35 1300 φ230 H84 1.1
110~120 60 55 10 0.8 1550
YZF 16-25 220~240 50/60 70 16 0.5 1300 φ250 H84 1.4
YZF 18-25 110~120 60 70 18 1.01 1550
YZF 18-30 220~240 50/60 73 18 0.5 1300 φ250 H84 1.5
110~120 60 75 18 1.1 1550
YZF 25-40 220~240 50/60 95 25 0.7 1300 φ300 H109-2 1.8
110~120 60 100 25 1.4 1450
YZF 34-45 220~240 50/60 120 34 0.85 1300 φ300 H109-3 2
110~120 60 110 34 1.5 1450



5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors 0
